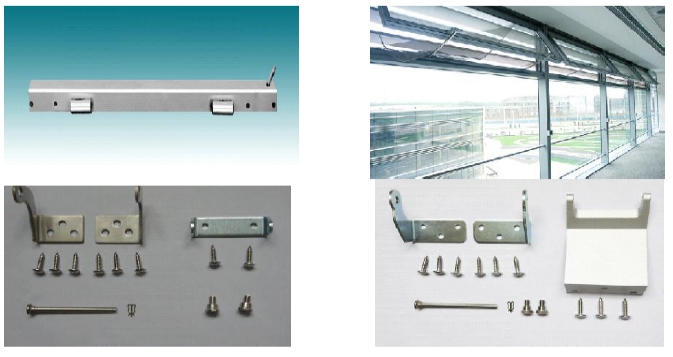

Twin Chain actuator

Technical data's :

(1) Model : EL-T
(2) Max. Stroke : 900mm
(3) Voltage : 24VDC±15%, 230VAC±15%
(4) Max. Current : 0.4A (230VAC), 3.5A (24VDC)
(5) Use Cycle : 10000 times
(6) Max. Force : 800N
(7) Operating temperatures: -10°C-- +65°C
(8) Insulation class: Ⅰ(230VAC), Ⅲ(24VDC)
(9) Parallel connection possibility: YES

Details:

(1) Twin Chain driven structure is particularly applied in opening
and closing of large-sized window, such as various slip, swing,
revolving windows.
(2) Protection Grade : IP32
(3) It conforms to 73/23LVD89/336EMC of EU directive.
(4) Attain CE certificate.
(5) Attain EN12101-2 certificate.
(6) Two different materials of Chain is optional. One chain is made
of stainless steel which is very strong and not easy to bend and
antirust. The other chain is made of ordinary steel which is cheaper
to use.

If actuator's stroke exceeds 660mm, the actuators are suggested
using on the bottom-hung outwards window.

(7) Additional function:

Twin chain actuator with anti-pinch function. If finger or obstacle
comes up when window is closing, window will stop for 6 seconds.
And finger can be out during the 6 seconds, then window will
continue to close.

המנוע עמידי אש 300 מעלות 30 דקות לפי תקן אירופי חדש
Temperature resistance: 300° C for 30 minutes
(according to DIN EN 12101/2)
