Twin Chain actuator for side push window (electric actuator

Technical data's :

(1) Model : EL-M
(2) Max Stroke : 550mm (window opening 90°)
(3) Voltage : 24VDC±15%, 230VAC±15%
(4) Max. Current : 0.1A (230VAC), 1.5A (24VDC)
(5) Use Cycle : 10000 times
(6) Max. Force(Torque) : 450N
(7) Operating temperatures: -10°C-- +65°C
(8) Insulation class: Ⅰ(230VAC), Ⅲ(24VDC)
(9) Parallel connection possibility: YES

Details:

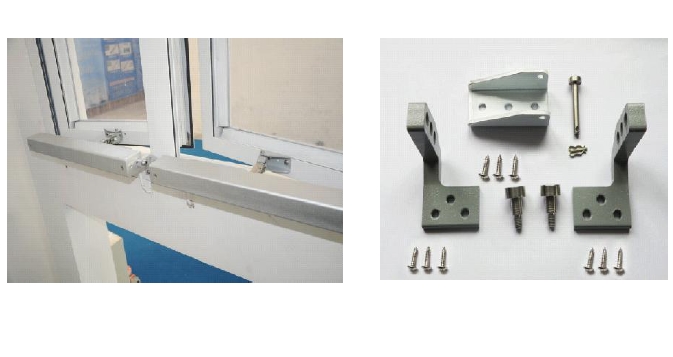

(1) Chain driven structure is particularly applied in side push
window for natural and smoke ventilation. Two side push
actuators can be opened and closed the same one window or
two each windows.
(2) Protection Grade : IP32
(3) It conforms to 73/23LVD、89/336EMC of EU directive.
(4)Attain CE certificate.
(5) Attain EN12101-2 certificate.
(6) Two different materials of Chain is optional. One chain is made
of stainless steel which is very strong and not easy to bend and
antirust. The other chain is made of ordinary steel which is cheaper
to use.
(7) If window is needed to open 90°, please make sure window
frame length is no less than 650mm for actuator to install.

המנוע עמידי אש 300 מעלות 30 דקות לפי תקן אירופי חדש
Temperature resistance: 300° C for 30 minutes
(according to DIN EN 12101/2)
