for smoke heat extraction and ventilation for bottom-hung, top-hung
and flat windows

Features
- opening speed approx. 9 mm/sec, so that opening time is less than 60 seconds

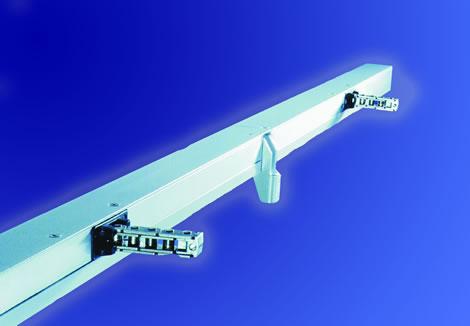

- 2 drive mechanisms with integrated electronics in the case
- with centre bracket for particularly robust fitting on the window
- automatic switch off when end stop is reached end stop “open”: using built-in
limit switch end stop “closed”: using electronic power cut-off,
- overload protection
- parallel power cut-off, integrated in the case
- tight closing using electronically defined pressing force
- opening mechanics with stainless steel chain, maintenance-free
- corrosion-free external elements
- swivel brackets included in delivery
- drive mechanism with reduced depth
- for particularly wide windows, requiring 2 drive mechanisms
- It conforms to 73/23LVD、89/336EMC of EU directive.
- Attain EN12101-2/9/10 certificate.

המנועים עמידי אש 300 מעלות 30 דקות לפי תקן אירופי חדש

Temperature
300° C for 30 minutes
resistance:
(according to DIN EN 12101/2)
